Hawker Hurricane Mk IIc

1/5th scale

wingspan 2438 mm (96″)
length 1966 mm (77,4″)
weight appr. tba
engines: tba
min. 6 channel radio (elevator, rudder, gas, aileron, flaps, gear)
building skills: advanced

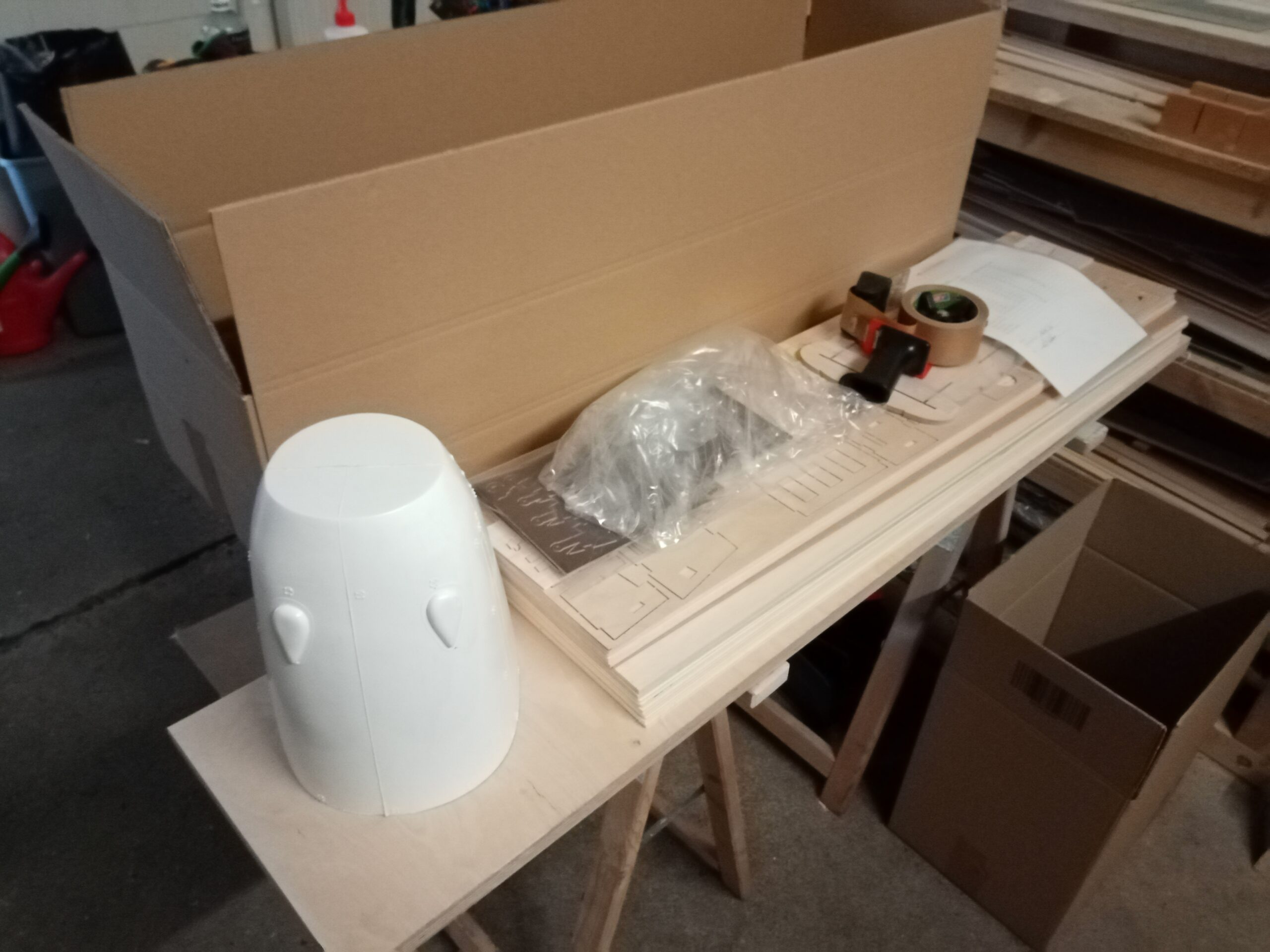

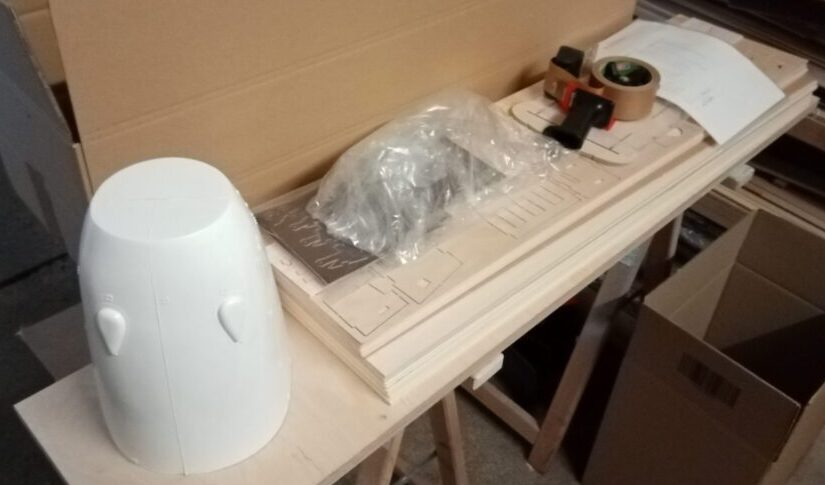

  • colored planset, wood kit plus premium extras: firewall, u/c mounting, wing and servo mounting milled , hinges, controls and connectors milled from phenolresin plates

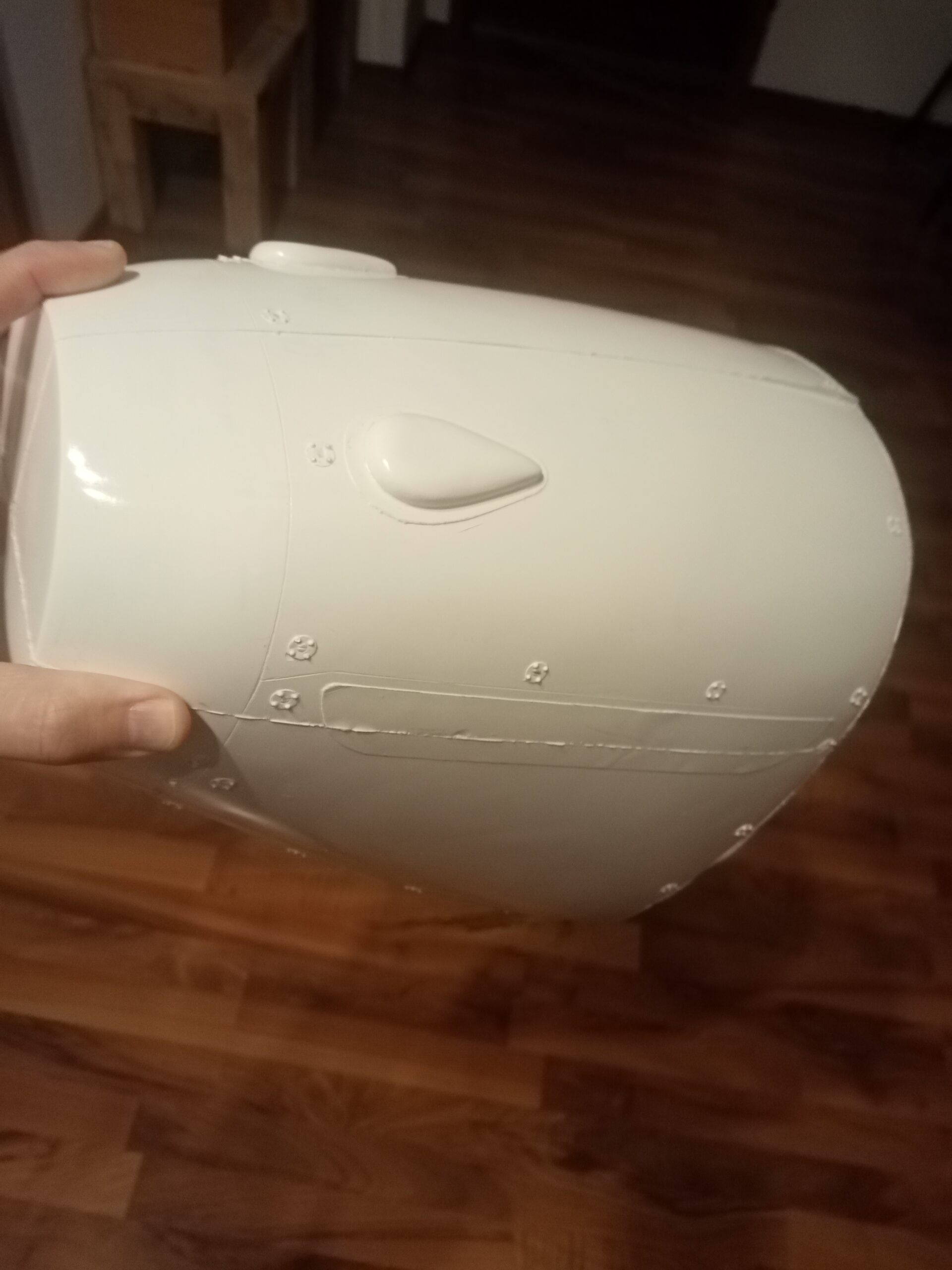

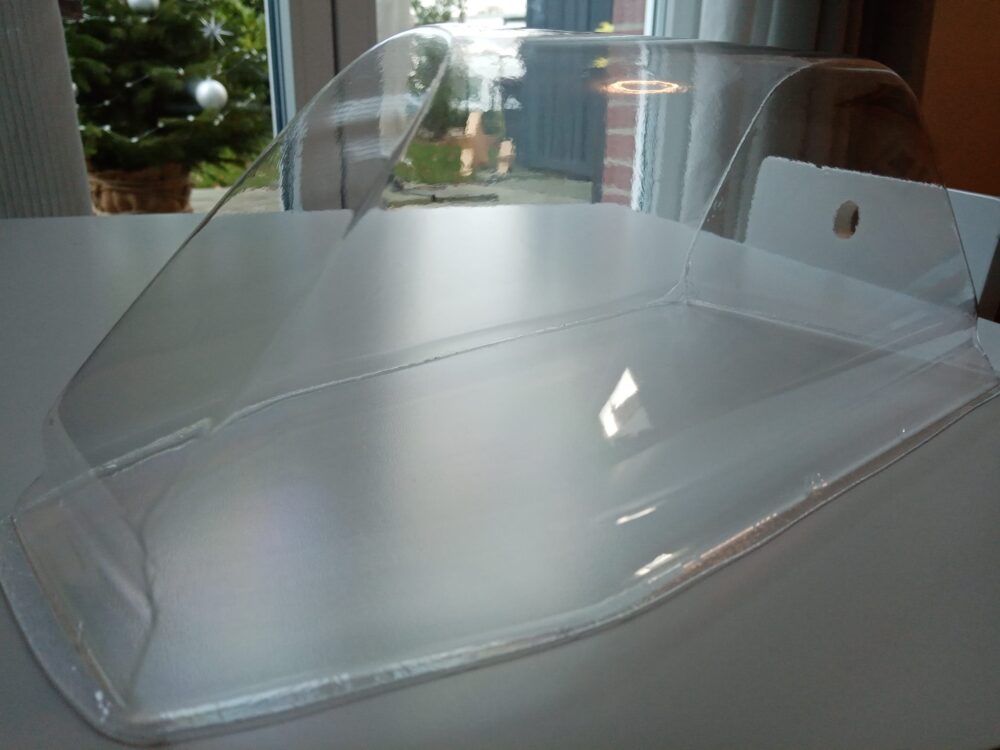

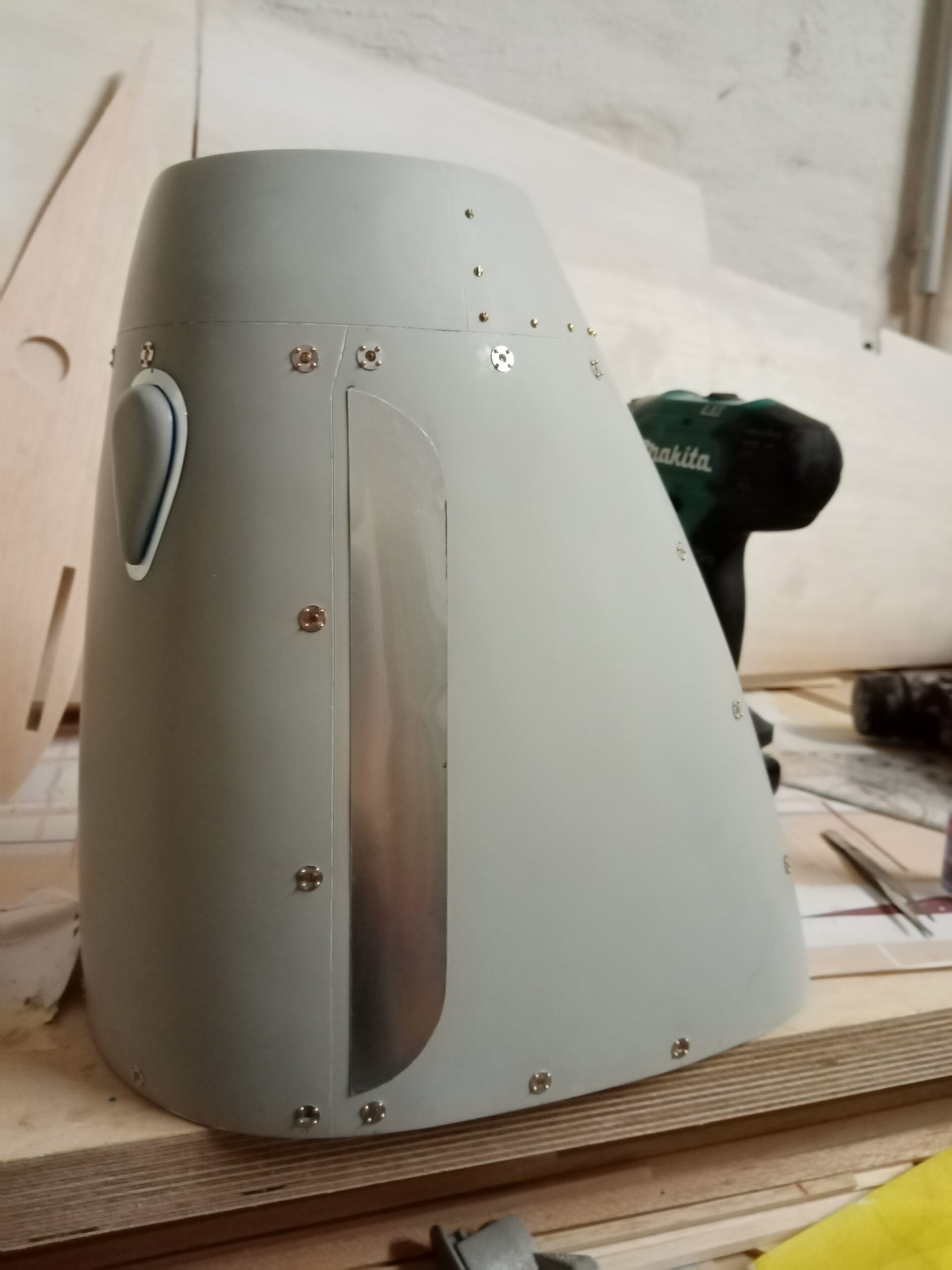

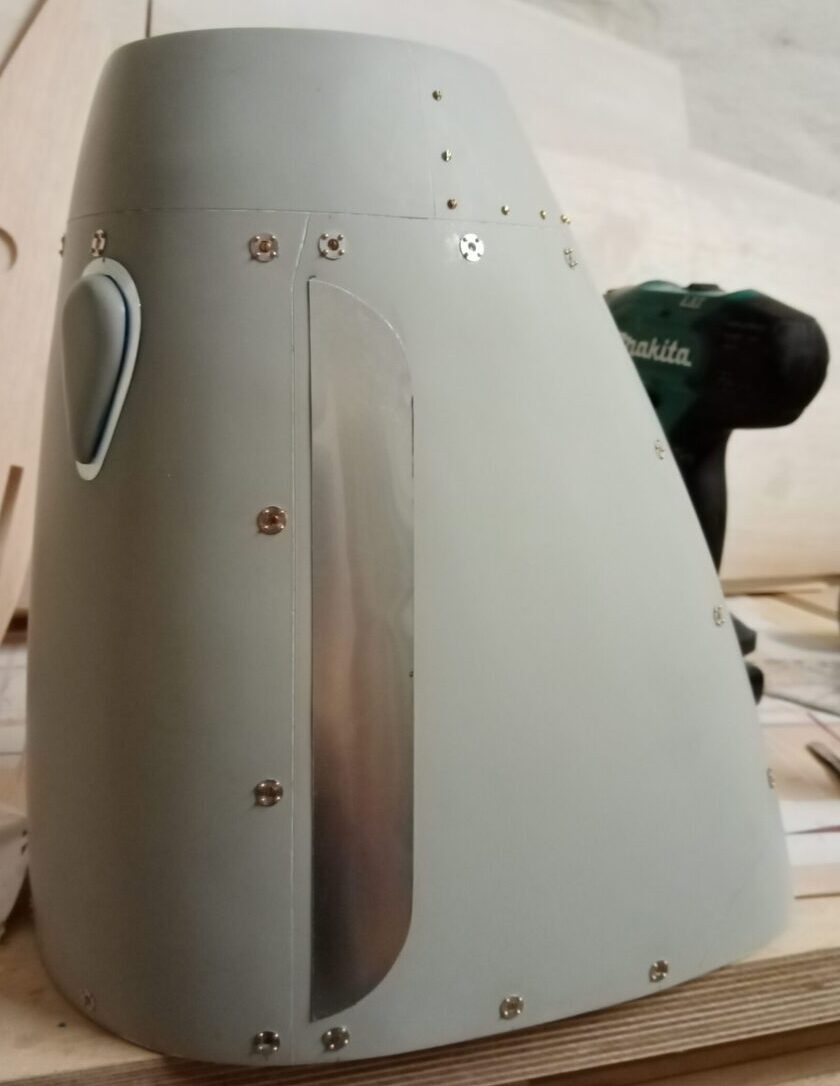

  • accessory set: clear canopy, detailled fiberglass cowling
  • gear set struts, custom designed for my planset

1/4th scale

wingspan 3048 mm (120″)
length 2457 mm (96,75″)
weight appr. tba
engines: tba
min. 6 channel radio (elevator, rudder, gas, aileron, flaps, gear)
building skills: experienced

Detailled fiberglass cowlings and clear canopies are for both scales in preparation.

Kit development

The Hurricane is probably the plane of the late 30s era, that amazes me the most, even ahead of the Spitfire. Obviously there are already a bunch of kits out there, but I always wanted to do my own and take it even further than other designers have in the past. If it’s the correct design of the fuse, especially the stringer design (which is 100% scale on mine), or the wing setup. There are a lot of challenges when designing a truely scale Hawker Hurricane. You immediatly know that this plane was the direct successor of the biplane era, just look at the Hawker Fury. It has a lot of it’s features, even if there’s only one wing. It is the true hero of the Battle of Britain – enjoy your built.

Thanks to Richard J. Caruana for support, you know his work from the SAM Publications Modellers Datafile.

1/4th kit enlargement was done in spring 2020.

Photo(s) taken at Flying Legends, Duxford 2014 by myself.
